Tiled profiles

ESTIMA

Estima tile profile - beyond respect for innovation

Made of materials that guarantee quality, safety and comfort. Available in different coatings and colour combinations

Photo gallery

See all

Video

Technical details

Overall width

~1191 mm

Actual width of coverage

1157 mm

Step height

35 mm

Profile depth

17.5 mm

Finished product thickness (steel)

0.5 mm

Finished product thickness (aluminium)

0.6 mm

Step length - module

350 mm

Minimum sheet length

720 mm

Maximum sheet length

4920 mm

Wavelength

289 mm

Innovative technology

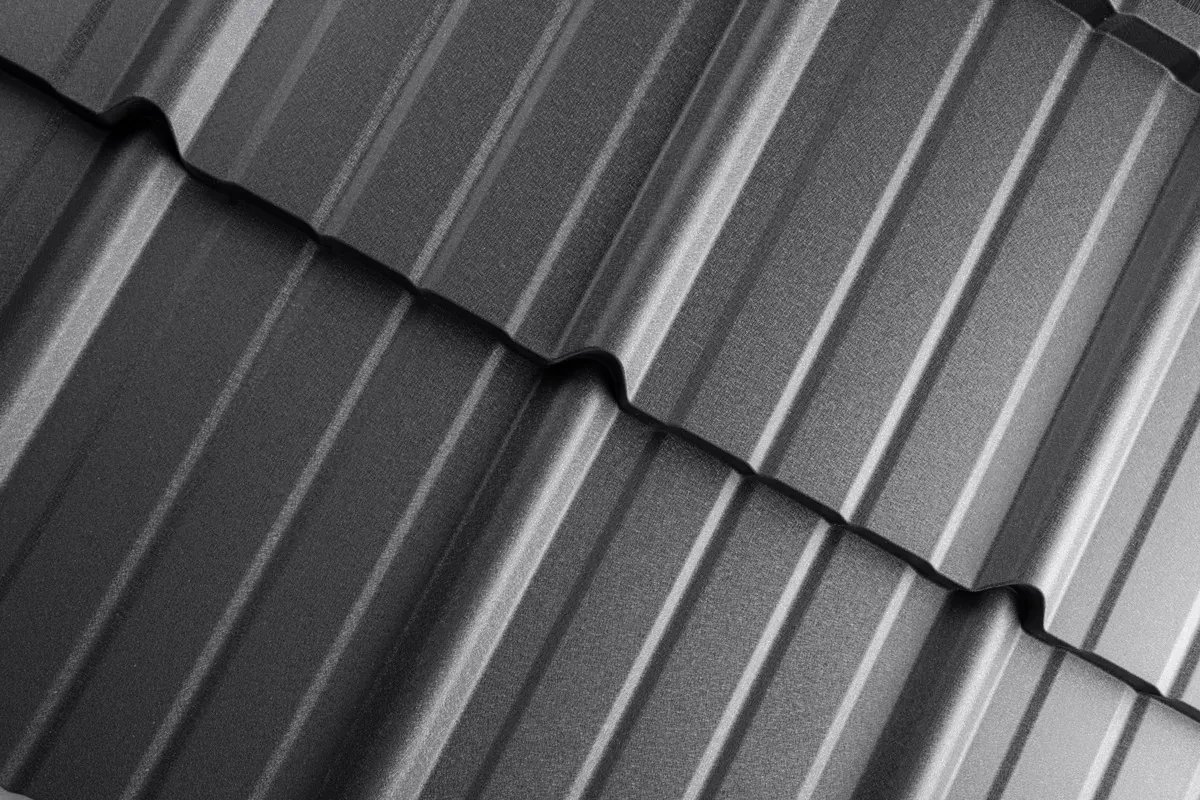

ESTIMA is a symmetrical flat metal roof tile. Thanks to the patented Safe Profiling System (SPS), it has very high technical characteristics

The relief height is 35 mm and the module length is 350 mm. Thanks to this construction, the roof tiles are extremely rigid and form an interesting shape.

Design that gives a feeling of security

ESTIMA forms a compact, highly decorative lattice-like structure on the roof pitch - it is both rigid and secure

The model will fit very well with both simple and more complex roof structures. ESTIMA complements many facade solutions, thanks to which it creates a unique aesthetic impression.

A modern way to personalise your home

ESTIMA steel roof tiles have been developed with both protective and aesthetic properties in mind

As a result, ESTIMA roof tiles are available in a wide range of colours and coatings, offering a wide range of configuration options regardless of the colour or texture of the facade. ESTIMA is an element that distinguishes and complements a building.

1 / 3

Roof tile profile

Paints and raw material

RAL 3005

RAL 3009

RAL 3011

RAL 8004

RAL 5010

RAL 6020

RAL 6029

RAL 7016

RAL 7024

RAL 8017

RAL 8019

RAL 9005

RAL 9006

RAL 9007

RAL 9010

Polyester Standard - coated sheets are the most popular metal roof option. Currently, sheets are used which are galvanised on both sides with an anti-corrosion layer, coated with primer or organic paint. The top layer provides colour and texture as well as weather protection.

STEEL SERVICE CENTRE (SSC)

The Steel Service Centre (SSC) is designed for customers looking for a material with specific properties and processing levels. The processing includes coiling, cutting and protection of the tin to meet the individual needs of the customer. We also accept orders using customer materials that are optimally utilised in our advanced manufacturing processes.

HYDROCONTROL

Water vapour condensation consists of a change in the position of water vapour on the surface of an uninsulated steel roof covering. This phenomenon depends on many factors, including but not limited to: the roofing structure and its thermal insulation. Condensation of water vapour can lead to wetting of the roof and consequently to fungal growth or corrosion. In extreme cases, it can cause condensation of water vapour, which is a change in the position of water vapour on the surface of an uninsulated steel roof covering.

SPS

The SPS process enables steel material to be profiled under optimum climatic conditions - regardless of the ambient temperature. This allows excellent plasticisation of the raw materials, and this is particularly true for paint coatings. The main advantages of SPS technology are the extraction of properties and parameters that increase the durability and performance of the material supplied by our company. The technology used makes the coating material particularly resistant to external factors, corrosion and the damaging effects of damage. At the same time, it does not lose its properties, ensuring effective roof protection and high aesthetic values for many years to come. With all these factors involved in the use of SPS, we have achieved the greatest success: the extension of the warranty period for the polyester standard coating (gloss, matt) by an additional five years for coating separation

Available colors

Poliester Standard (RAL)

RAL 3005
RAL 3009
RAL 3011
RAL 8004
RAL 5010
RAL 6020
RAL 6029
RAL 7016
RAL 7024
RAL 8017
RAL 8019
RAL 9005
RAL 9006
RAL 9007
RAL 9010

Poliester Standard (MAT)

RAL 3005
RAL 3009
RAL 3011
RAL 5010
RAL 6020
RAL 6029
RAL 7016
RAL 7024
RAL 8004
RAL 8017
RAL 8019
RAL 9005
RAL 9006
RAL 9007
RAL 9010

Super Poliester Standard R-MAT

RAL 9007
RAL 7016
RAL 9005

Pladur® RAL Premium

Pladur® RAL Premium TK 3005
Pladur® RAL Premium TK 3011
Pladur® RAL Premium TK 6005
Pladur® RAL Premium TK 7024
Pladur® RAL Premium TK 8004
Pladur® RAL Premium TK 8017
Pladur® RAL Premium TK 9005

Colorcoat HPS 200 Ultra®

Colorcoat HPS 200 Ultra® 8004
Colorcoat HPS 200 Ultra® 3009
Colorcoat HPS 200 Ultra® 8017
Colorcoat HPS 200 Ultra® 7016
Colorcoat HPS 200 Ultra® 9005

Pladur® Wrinkle mat

Pladur® Wrinkle MAT TK 6020
Pladur® Wrinkle MAT TK 8004
Pladur® Wrinkle MAT TK 3009
Pladur® Wrinkle MAT TK 8019
Pladur® Wrinkle MAT TK 7016
Pladur® Wrinkle MAT TK 7024
Pladur® Wrinkle MAT TK 9005
Pladur® Wrinkle MAT TK 8017

Pladur® Relief IceCrystal

Pladur® Relief iceCrystal TK 6020
Pladur® Relief iceCrystal TK 8004
Pladur® Relief iceCrystal TK 3009
Pladur® Relief iceCrystal TK 8019
Pladur® Relief iceCrystal TK 7016
Pladur® Relief iceCrystal TK 7024
Pladur® Relief iceCrystal TK 9005

SUPERIOR HB

SUPERIOR HB RAL 8004 HB
SUPERIOR HB RAL 3009 HB
SUPERIOR HB RAL 8019 HB
SUPERIOR HB RAL 7016 HB
SUPERIOR HB RAL 7024 HB
SUPERIOR HB RAL 9005 HB

Pladur® Wrinkle Mat Plus

Pladur® Wrinkle Mat Plus 9005
Pladur® Wrinkle Mat Plus 7016
Pladur® Wrinkle Mat Plus 8019

MAT Corase

RAL 9005
RAL 7016
RAL 9019
RAL 8017

Aluminium STUCCO

RAL 9005
RAL 7016
RAL 9019
RAL 8017

PUR Mat

SUPERIOR HB RAL 8004 HB
SUPERIOR HB RAL 3009 HB
SUPERIOR HB RAL 8019 HB
SUPERIOR HB RAL 7016 HB
SUPERIOR HB RAL 7024 HB
SUPERIOR HB RAL 9005 HB

Coating

Protective Cover	Coating Thickness Side A	Environmental Classification	Perforation Warranty	Warranty for paint delamination
Pladur® Wrinkle Mat Plus	50 µm	C4	60 years	30 years
Pladur® Wrinkle mat	35 µm	C4	45 years - Guarantee against perforation for environmental classification C1-C3 24 years - Guarantee against perforation for environmental classification C4	20 years
Pladur® Relief IceCrystal	at least 36 μm	C4	55 years - Guarantee against perforation for environmental classification C1-C3 35 years - Guarantee against perforation for environmental classification C4	20 years
Poliester standard mat	35 µm	C3	45 years	15 years
Superior HB	50 µm	C4	55 years	45 years

Presentation 3D

Files to download

Produkta lapa - Estima skārda dakstiņš

download file

Montāžas instrukcijas - Dakstiņprofils ESTIMA

download file
