Trapezoidal profiles - for facades and roofs

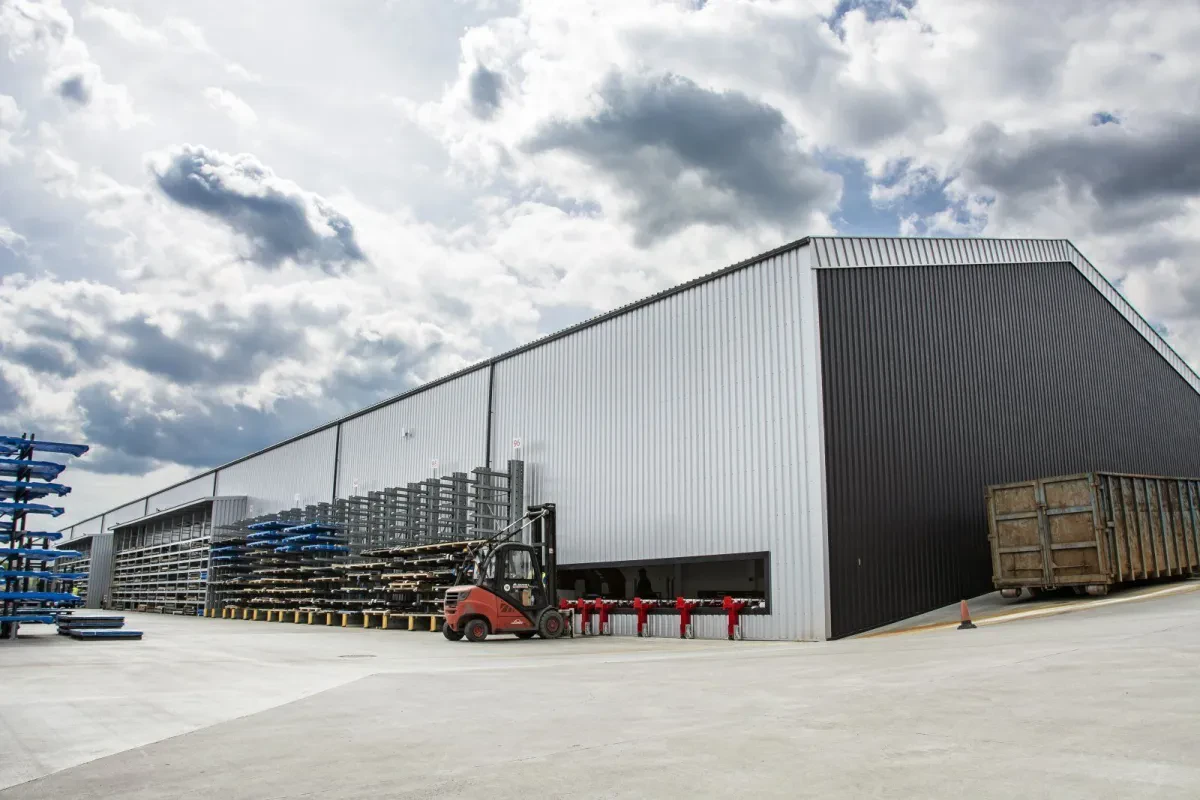

The trapezoidal roof profile is unique because of its simplicity and expressive shape. It allows for efficient constructions that often break the traditional division between roofing and facades. A wide range of thicknesses, the possibility to cut the tiles to size, rich colours create unlimited possibilities for the use of the profiles.

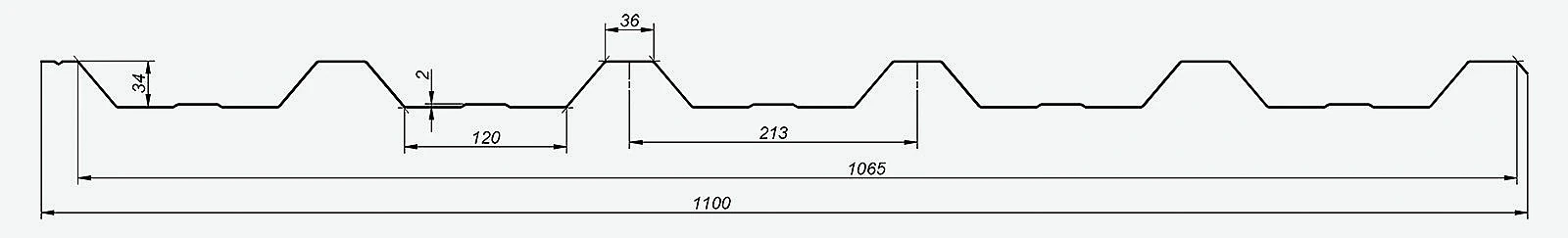

Technical details

Overall width

~1100 mm

Actual width of coverage

1065 mm

Sheet thickness (steel)

0, 5-1, 0 mm

Recommended length

max 12 mb

Profile height

34 mm

Roof tile profile

Paints and raw material

RAL 3005
RAL 3009
RAL 3011
RAL 8004
RAL 5010
RAL 6020
RAL 6029
RAL 7016
RAL 7024
RAL 8017
RAL 8019
RAL 9005
RAL 9006
RAL 9007
RAL 9010

Polyester Standard - coated sheets are the most popular metal roof option. Currently, sheets are used which are galvanised on both sides with an anti-corrosion layer, coated with primer or organic paint. The top layer provides colour and texture as well as weather protection.






STEEL SERVICE CENTRE (SSC)

The Steel Service Centre (SSC) is designed for customers looking for a material with specific properties and processing levels. The processing includes coiling, cutting and protection of the tin to meet the individual needs of the customer. We also accept orders using customer materials that are optimally utilised in our advanced manufacturing processes.

HYDROCONTROL

Water vapour condensation consists of a change in the position of water vapour on the surface of an uninsulated steel roof covering. This phenomenon depends on many factors, including but not limited to: the roofing structure and its thermal insulation. Condensation of water vapour can lead to wetting of the roof and consequently to fungal growth or corrosion. In extreme cases, it can cause condensation of water vapour, which is a change in the position of water vapour on the surface of an uninsulated steel roof covering.

SPS

The SPS process enables steel material to be profiled under optimum climatic conditions - regardless of the ambient temperature. This allows excellent plasticisation of the raw materials, and this is particularly true for paint coatings. The main advantages of SPS technology are the extraction of properties and parameters that increase the durability and performance of the material supplied by our company. The technology used makes the coating material particularly resistant to external factors, corrosion and the damaging effects of damage. At the same time, it does not lose its properties, ensuring effective roof protection and high aesthetic values for many years to come. With all these factors involved in the use of SPS, we have achieved the greatest success: the extension of the warranty period for the polyester standard coating (gloss, matt) by an additional five years for coating separation

Available colors

Poliester Standard (RAL)
  • RAL 3005
  • RAL 3009
  • RAL 3011
  • RAL 8004
  • RAL 5010
  • RAL 6020
  • RAL 6029
  • RAL 7016
  • RAL 7024
  • RAL 8017
  • RAL 8019
  • RAL 9005
  • RAL 9006
  • RAL 9007
  • RAL 9010
Poliester Standard (MAT)
  • RAL 3005
  • RAL 3009
  • RAL 3011
  • RAL 5010
  • RAL 6020
  • RAL 6029
  • RAL 7016
  • RAL 7024
  • RAL 8004
  • RAL 8017
  • RAL 8019
  • RAL 9005
  • RAL 9006
  • RAL 9007
  • RAL 9010
Super Poliester Standard R-MAT
  • RAL 9007
  • RAL 7016
  • RAL 9005
Pladur® RAL Premium
  • Pladur® RAL Premium TK 3005
  • Pladur® RAL Premium TK 3011
  • Pladur® RAL Premium TK 6005
  • Pladur® RAL Premium TK 7024
  • Pladur® RAL Premium TK 8004
  • Pladur® RAL Premium TK 8017
  • Pladur® RAL Premium TK 9005
Pladur® Wrinkle mat
  • Pladur® Wrinkle MAT TK 6020
  • Pladur® Wrinkle MAT TK 8004
  • Pladur® Wrinkle MAT TK 3009
  • Pladur® Wrinkle MAT TK 8019
  • Pladur® Wrinkle MAT TK 7016
  • Pladur® Wrinkle MAT TK 7024
  • Pladur® Wrinkle MAT TK 9005
  • Pladur® Wrinkle MAT TK 8017
Pladur® Relief IceCrystal
  • Pladur® Relief iceCrystal TK 6020
  • Pladur® Relief iceCrystal TK 8004
  • Pladur® Relief iceCrystal TK 3009
  • Pladur® Relief iceCrystal TK 8019
  • Pladur® Relief iceCrystal TK 7016
  • Pladur® Relief iceCrystal TK 7024
  • Pladur® Relief iceCrystal TK 9005
SUPERIOR HB
  • SUPERIOR HB RAL 8004 HB
  • SUPERIOR HB RAL 3009 HB
  • SUPERIOR HB RAL 8019 HB
  • SUPERIOR HB RAL 7016 HB
  • SUPERIOR HB RAL 7024 HB
  • SUPERIOR HB RAL 9005 HB
Pladur® Relief Wood
  • RAL 9005
Pladur® Wrinkle Mat Plus
  • Pladur® Wrinkle Mat Plus 9005
  • Pladur® Wrinkle Mat Plus 7016
  • Pladur® Wrinkle Mat Plus 8019
Aluminium STUCCO
  • RAL 9005
  • RAL 7016
  • RAL 9019
  • RAL 8017
Aluzinc
  • Aluzinc 185
PUR Mat
  • SUPERIOR HB RAL 8004 HB
  • SUPERIOR HB RAL 3009 HB
  • SUPERIOR HB RAL 8019 HB
  • SUPERIOR HB RAL 7016 HB
  • SUPERIOR HB RAL 7024 HB
  • SUPERIOR HB RAL 9005 HB
+

Coating

Protective Cover Coating Thickness Side A Environmental Classification Perforation Warranty Warranty for paint delamination
Alumīnijs STUCCO/MAT 25 µm index 3 category 4a 60 years 30 years
Pladur® Wrinkle Mat Plus 50 µm C4 60 years 30 years
Superior HB 50 µm C4 55 years 45 years
Pladur® Relief IceCrystal at least 36 μm C4 55 years - Guarantee against perforation for environmental classification C1-C3 35 years - Guarantee against perforation for environmental classification C4 20 years
Pladur® Relief Textured Wood 36 µm C4 35 years for environmental classification C1-C3 25 years for environmental classification C4 20 years
Pladur® Wrinkle mat 35 µm C4 45 years - Guarantee against perforation for environmental classification C1-C3 24 years - Guarantee against perforation for environmental classification C4 20 years
Poliester standard mat 35 µm C3 45 years 15 years
Pladur® RAL Premium 25 µm C4 35 years vides klasifikācijai C1-C3 25 years vides klasifikācijai C4 10 years
Super poliesters R-MAT 25 µm C3 25 years 10 years
Aluzinc - C4 25 years
Poliester Standard matēts INNOVA 35 μm C3 20 years 10 years
Poliester standard RAL 25 µm C3 10 years 10 years
Presentation 3D

Files to download

Montāžas instrukcijas - Trapecveida profili.pdf

Produkta lapa - T-35+ trapecveida skārda loksne.pdf

TRANSPORTS

We offer a delivery service to ensure your order reaches you quickly and safely. Our delivery policy is to deliver directly to the address you specify and the time of delivery will be agreed individually with our manager. The delivery service is only available on weekdays. Our courier will contact you in advance to verify the delivery address and advise you of the estimated delivery time.

GET CLOSER TO YOU

Regional partners may be able to collect the goods

RECEIVE ON THE SPOT

If you want to pick up your order in store, we will have it ready for you within the time agreed with our sales manager. To collect your order, you will need to visit the Produs store and show your order number and proof of identity. Our shop address and opening hours are listed on our website. When your order is ready for collection, we will contact you to let you know that you can collect it in store. We do our best to ensure that your order is prepared and that you are provided with quality service so that you can receive your goods quickly and efficiently.

+
