Tiled profiles
KUGA
KUGA tile profile has a distinctive shape, timeless style
Kuga is a single-module metal roof tile with a unique design that not only provides a timeless look, but also supports the drying out of the roofing thanks to local ventilation.
Photo gallery
Video
Technical details
Overall width
~1236 mm
Effective coverage width
1190 mm
Finished product thickness (steel)
0.5 mm
Finished product thickness (aluminium)
0.6 mm
Sheet length
385 mm
Step length - module
350 mm
Step height
35 mm
Profile depth
7.6 mm
Wavelength
595 mm
Minimum roof pitch
25°
Unique shape

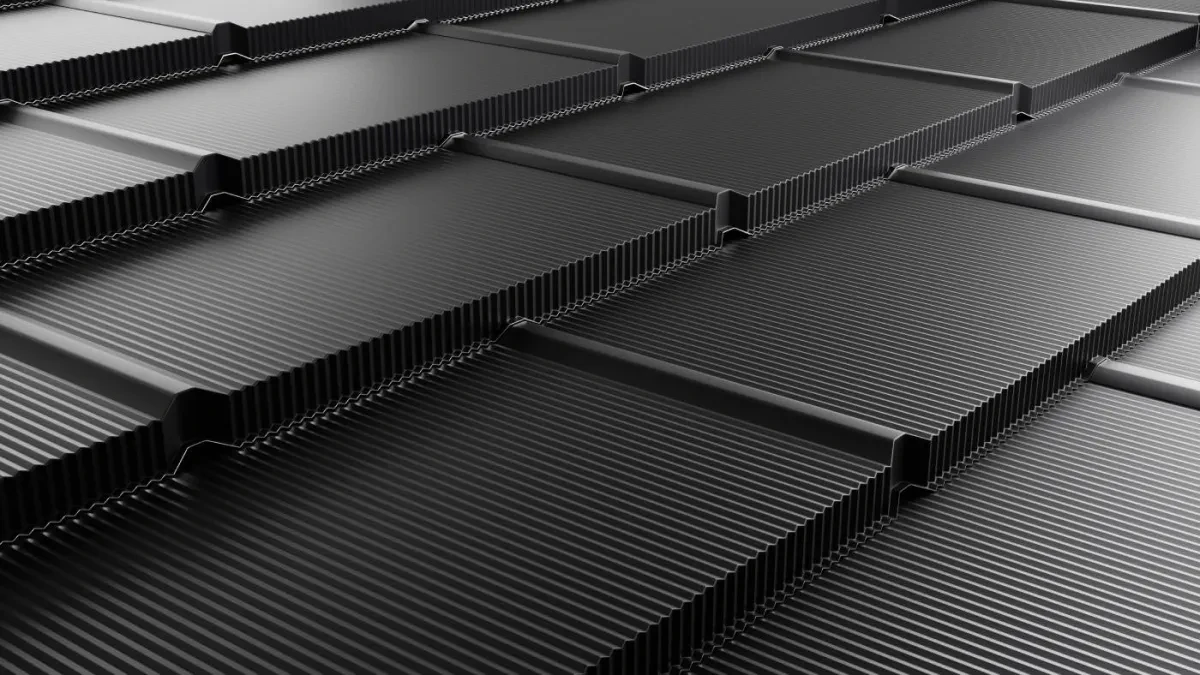

The Kuga tile profile is distinguished by its geometry. Kuga's simple, segmented shape with reinforced nano-rolls creates a coherent and sophisticated pattern that impresses with its timeless aesthetic and durability.
The advanced nano-wave technology significantly improves the technical characteristics of the product. Ultra Nano increases the rigidity of the material, which reduces the ripple effect, providing a smoother and more stable surface. In addition, this technology gives the product a modern and elegant look, emphasising its aesthetics and high-quality finish.
Roof installation
The box is assembled using the brick method.
The mounting socket allows the sheets to be precisely positioned in relation to the first row, thanks to which the coating retains its ideal shape.
Geometry to support pavement drying
The shape of the Kuga steel roof tiles is not only aesthetically pleasing, but also allows water vapour condensation to be more easily drained away when laid in a brick pattern.
The 9 mm wave deflection from the bottom sheet creates local ventilation, which helps the covering to dry. This solution effectively reduces the risk of moisture build-up, which plays a key role in maintaining the technical durability and aesthetics of the roof covering over many years.
Increased technical parameters
Kuga is a metal roof tile profile that has achieved very good technical performance thanks to the patented Safe Profiling System (SPS).
In addition, the advanced nano-wave technology is an advanced solution that stands out for its improved technical characteristics.
Advanced nanowave technology
Technology that significantly improves the technical performance of a product.
Ultra Nano increases the rigidity of the material, which reduces the ripple effect, providing a smoother and more stable surface. In addition, this technology gives metal roof tiles a modern and elegant look, emphasising its aesthetics and the high quality of the finish.
Roof tile profile
Paints and raw material
STEEL SERVICE CENTRE (SSC)
HYDROCONTROL
SPS
Available colors
Pladur® Wrinkle mat
- Pladur® Wrinkle MAT TK 6020
- Pladur® Wrinkle MAT TK 8004
- Pladur® Wrinkle MAT TK 3009
- Pladur® Wrinkle MAT TK 8019
- Pladur® Wrinkle MAT TK 7016
- Pladur® Wrinkle MAT TK 7024
- Pladur® Wrinkle MAT TK 9005
- Pladur® Wrinkle MAT TK 8017
Pladur® Wrinkle Mat Plus
- Pladur® Wrinkle Mat Plus 9005
- Pladur® Wrinkle Mat Plus 7016
- Pladur® Wrinkle Mat Plus 8019
Aluminium STUCCO
- RAL 9005
- RAL 7016
- RAL 9019
- RAL 8017
Coating
| Protective Cover | Coating Thickness Side A | Environmental Classification | Perforation Warranty | Warranty for paint delamination |
|---|---|---|---|---|
| Pladur® Wrinkle Mat Plus | 50 µm | C4 | 60 years | 30 years |
| Pladur® Wrinkle mat | 35 µm | C4 | 45 years environmental classification C1-C3 25 years environmental classification C4, | 20 years |
| Aluminium MAT | 25 µm | index 3 category 4a | 60 years | 30 years |
