KUGA Line tile profile - beauty in a straight line

is a new generation of flat metal roof tiles, characterised by their sharp geometry and unique shape.

Technical details

Overall width

~1236 mm

Effective coverage width

1190 mm

Finished product thickness (steel)

0.5 mm

Finished product thickness (aluminium)

0.6 mm

Sheet length

725 mm

Step length - module

350 mm

Step height

30 mm

Profile depth

7.6 mm

Wavelength

595 mm

Minimum roof pitch

25°

Kuga Line - beauty in a straight line

Kuga Line is a new generation of flat metal roof tiles, characterised by their sharp geometry and unique shape. Available in a two-module version (350 mm module, 30 mm offset height), it provides a sleek, modern look. The linear assembly allows the roof surface to look flawless - the precise lines and evenly spaced metal roof tile profiles create a seamless, consistent whole, while the nano corrugation adds aesthetics and increases rigidity. The symmetrical design facilitates assembly and reduces scrap, ensuring strength and precision.

Beauty in a straight line

Kuga Line is a metal roof tile profile that impresses not only with its looks, but also with its outstanding ease of installation.
Linear installation allows the roof surface to look perfect - precise lines and evenly spaced metal roof tile profiles form a harmonious whole.

Assembly precision and simplicity in one

Linear assembly involves laying metal roof tile modules in straight, even lines from one end of the roof to the other, parallel to the eaves and roof edge.

By installing Kuga metal roof tiles according to the manufacturer's recommendations, offset by half a sheet, the continuity of the relief line is perfectly preserved, emphasising the coherence of the entire surface. In addition, the symmetrical design allows stacking from right to left or in the opposite direction, which significantly reduces waste and speeds up installation. Bolts matched to the roof colour and the optimum coating width guarantee an aesthetic and flawless roof appearance.



Outstanding aesthetics and structural strength

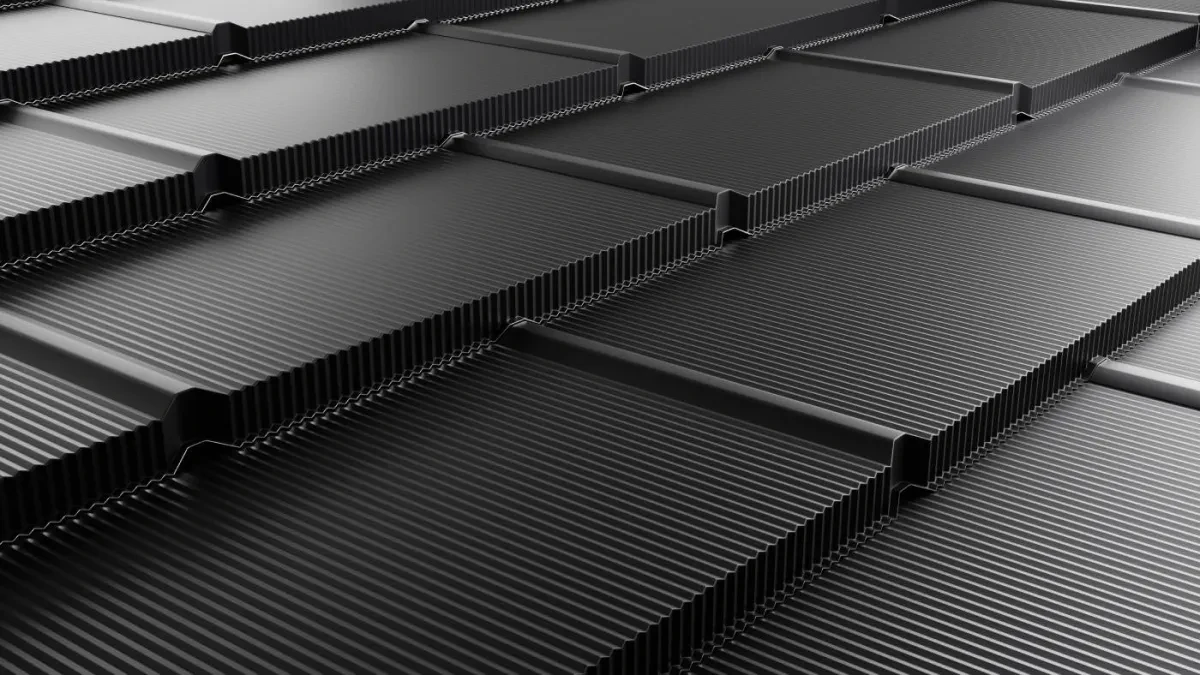

Kuga Line is distinguished by a fine nano wave that complements its character and modern design.

This subtle embossing not only enriches the aesthetics of the flat surface, adding depth and dynamism, but also performs the important technical function of improving its rigidity, which is particularly important for large surfaces.

Technology meets quality

With its impressive and timeless appearance, Kuga Line steel roof tiles are a product created thanks to the latest technological advances.

The production line is fully automatic and highly efficient. Based on the guidelines and recommendations of the Research and Development Department, each production step is carefully planned and automated, ensuring not only the highest quality but also unrivalled precision.



1 / 5

Roof tile profile

Paints and raw material

Pladur® Wrinkle MAT TK 6020
Pladur® Wrinkle MAT TK 8004
Pladur® Wrinkle MAT TK 3009
Pladur® Wrinkle MAT TK 8019
Pladur® Wrinkle MAT TK 7016
Pladur® Wrinkle MAT TK 7024
Pladur® Wrinkle MAT TK 9005
Pladur® Wrinkle MAT TK 8017

Pladur® Wrinkle mat - a grainy, two-layer coating system, thickness 35 microns. The sheets meet the requirements of Class A2 according to Commission Decision 96/603/EC on fire protection and can be used in corrosion category C4 according to EN ISO 12944




STEEL SERVICE CENTRE (SSC)

The Steel Service Centre (SSC) is designed for customers looking for a material with specific properties and processing levels. The processing includes coiling, cutting and protection of the tin to meet the individual needs of the customer. We also accept orders using customer materials that are optimally utilised in our advanced manufacturing processes.

HYDROCONTROL

Water vapour condensation consists of a change in the position of water vapour on the surface of an uninsulated steel roof covering. This phenomenon depends on many factors, including but not limited to: the roofing structure and its thermal insulation. Condensation of water vapour can lead to wetting of the roof and consequently to fungal growth or corrosion. In extreme cases, it can cause condensation of water vapour, which is a change in the position of water vapour on the surface of an uninsulated steel roof covering.

SPS

The SPS process enables steel material to be profiled under optimum climatic conditions - regardless of the ambient temperature. This allows excellent plasticisation of the raw materials, and this is particularly true for paint coatings. The main advantages of SPS technology are the extraction of properties and parameters that increase the durability and performance of the material supplied by our company. The technology used makes the coating material particularly resistant to external factors, corrosion and the damaging effects of damage. At the same time, it does not lose its properties, ensuring effective roof protection and high aesthetic values for many years to come. With all these factors involved in the use of SPS, we have achieved the greatest success: the extension of the warranty period for the polyester standard coating (gloss, matt) by an additional five years for coating separation

Available colors

Pladur® Wrinkle mat
  • Pladur® Wrinkle MAT TK 6020
  • Pladur® Wrinkle MAT TK 8004
  • Pladur® Wrinkle MAT TK 3009
  • Pladur® Wrinkle MAT TK 8019
  • Pladur® Wrinkle MAT TK 7016
  • Pladur® Wrinkle MAT TK 7024
  • Pladur® Wrinkle MAT TK 9005
  • Pladur® Wrinkle MAT TK 8017
Pladur® Wrinkle Mat Plus
  • Pladur® Wrinkle Mat Plus 9005
  • Pladur® Wrinkle Mat Plus 7016
  • Pladur® Wrinkle Mat Plus 8019
Aluminium STUCCO
  • RAL 9005
  • RAL 7016
  • RAL 9019
  • RAL 8017
+
Presentation 3D

Files to download

Montāžas instrukcija - Dakstiņprofilam KUGA Line
