Vertical joint profiles

HIGH-TECH

Craft-inspired technology

Technological innovation in all areas makes it possible to realise wants and needs. The HIGH-TECH Panel is the best proof of this. It is the result of a collaboration between modern roofers, market leaders and experts. The HIGH-TECH panel defines the shape of the standing seam roof panel. This is the most advanced technology available - it meets the expectations of roofers, architects and builders who are realising bold projects for the future.

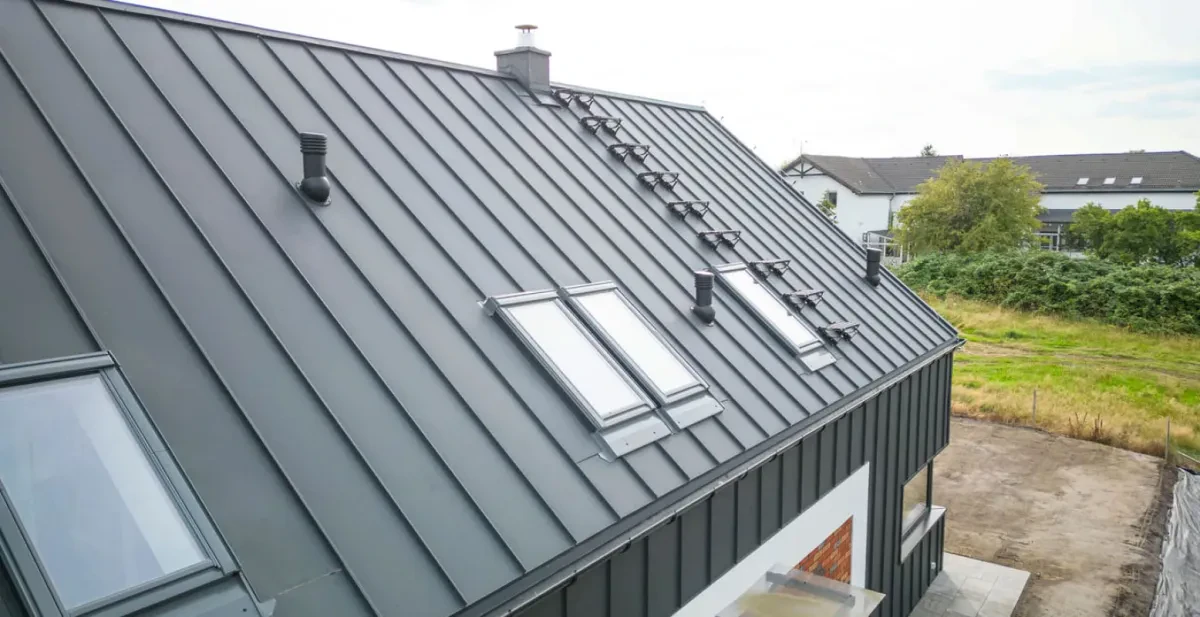

Photo gallery

See all

Video

Technical details

Overall width

~528 mm

Effective coverage width

488 mm

Finished product thickness (steel)

0.5 mm

Finished product thickness (aluminium)

0.6 mm

Minimum sheet length

1400 mm

Curb height

32 mm

Click height

27.5 mm

Recommended length

up to 8 t.m.

Improved model functionality

External fixing lock with special profile and optimised height for easy installation

The design of the clip reduces sheet tension. This is the latest latch technology available on the market. A special elevation at the locks ensures that the flat surface of the panel adheres evenly to the substrate and reduces waviness.

Technical details to simplify assembly

Reinforced mounting hinge integrated into the panel for greater stability

Firstly, it reduces the risk of stress when bolted. The specially profiled shape of the fixing holes guarantees a correct connection between the metal sheets and the screws. This allows the roof to function smoothly in changing weather conditions.

Comfort and safety

The raw material ensures longevity and a written guarantee for many years

The HIGH-TECH connection, created by several innovative components, ensures year-round voltage. The product fits perfectly into sustainable building trends while maintaining a modern design.

Traditions are refined. Innovation liberates

The standing seam metal roof and facade is one of the strongest architectural trends

Flat panels in contrasting combinations with wood, concrete, stone or glass set the trend in contemporary architectural aesthetics. HIGH-TECH panels have a contemporary design that gives the roof and facade a sophisticated character.

Best quality material

For more than 20 years, global steelmaking giant THYSSENKRUPP has been one of the suppliers of raw materials for its products. Panel HIGH-TECH uses the highest quality steel. Panel HIGH-TECH is available with 4 types of Pladur® coatings, which not only enhances the modern aesthetics, but above all allows us to offer the best warranty on the market.

1 / 5

Roof tile profile

Paints and raw material

RAL 9007

RAL 7016

RAL 9005

R-MAT coated steel sheet is characterised by high scratch resistance and UV stability. The varnish used is a combination of a thick primer and a super-polyester topcoat with the addition of ceramic and acrylic granules. This guarantees very good resistance to external weather conditions.

Advantages and characteristics

The Super Polyester R-MAT coated sheet is:

semi-matt finish
high scratch resistance
very good UV stability
very good resistance to external weather conditions
the right choice for both roofs and facades installed in sunny locations and areas with high annual temperature variations

STEEL SERVICE CENTRE (SSC)

The Steel Service Centre (SSC) is designed for customers looking for a material with specific properties and processing levels. The processing includes coiling, cutting and protection of the tin to meet the individual needs of the customer. We also accept orders using customer materials that are optimally utilised in our advanced manufacturing processes.

HYDROCONTROL

Water vapour condensation consists of a change in the position of water vapour on the surface of an uninsulated steel roof covering. This phenomenon depends on many factors, including but not limited to: the roofing structure and its thermal insulation. Condensation of water vapour can lead to wetting of the roof and consequently to fungal growth or corrosion. In extreme cases, it can cause condensation of water vapour, which is a change in the position of water vapour on the surface of an uninsulated steel roof covering.

SPS

The SPS process enables steel material to be profiled under optimum climatic conditions - regardless of the ambient temperature. This allows excellent plasticisation of the raw materials, and this is particularly true for paint coatings. The main advantages of SPS technology are the extraction of properties and parameters that increase the durability and performance of the material supplied by our company. The technology used makes the coating material particularly resistant to external factors, corrosion and the damaging effects of damage. At the same time, it does not lose its properties, ensuring effective roof protection and high aesthetic values for many years to come. With all these factors involved in the use of SPS, we have achieved the greatest success: the extension of the warranty period for the polyester standard coating (gloss, matt) by an additional five years for coating separation

Available colors

Super Poliester Standard R-MAT

RAL 9007
RAL 7016
RAL 9005

Pladur® Wrinkle mat

Pladur® Wrinkle MAT TK 6020
Pladur® Wrinkle MAT TK 8004
Pladur® Wrinkle MAT TK 3009
Pladur® Wrinkle MAT TK 8019
Pladur® Wrinkle MAT TK 7016
Pladur® Wrinkle MAT TK 7024
Pladur® Wrinkle MAT TK 9005
Pladur® Wrinkle MAT TK 8017

Pladur® Relief IceCrystal

Pladur® Relief iceCrystal TK 6020
Pladur® Relief iceCrystal TK 8004
Pladur® Relief iceCrystal TK 3009
Pladur® Relief iceCrystal TK 8019
Pladur® Relief iceCrystal TK 7016
Pladur® Relief iceCrystal TK 7024
Pladur® Relief iceCrystal TK 9005

Pladur® Relief Wood

RAL 9005

Pladur® Wrinkle Mat Plus

Pladur® Wrinkle Mat Plus 9005
Pladur® Wrinkle Mat Plus 7016
Pladur® Wrinkle Mat Plus 8019

Coating

Protective Cover	Coating Thickness Side A	Environmental Classification	Perforation Warranty	Warranty for paint delamination
Pladur® Wrinkle Mat Plus	50 µm	C4	60 years	30 years
Pladur® Wrinkle mat	35 µm	C4	45 years - Guarantee against perforation for environmental classification C1-C3 24 years - Guarantee against perforation for environmental classification C4	20 years
Pladur® Relief IceCrystal	at least 36 μm	C4	55 years - Guarantee against perforation for environmental classification C1-C3 35 years - Guarantee against perforation for environmental classification C4	20 years
Pladur® Relief Textured Wood	Min 36 µm	C4	55 years - Guarantee against perforation for environmental classification C1-C3 35 years - Guarantee against perforation for environmental classification C4	20 years

Presentation 3D

Files to download

Montazas instrukcija - HIGH TECH PANEL.pdf

download file

Produkta datu lapa - Panel High Tech.pdf

download file
