Vertical joint profiles
TERRANO
A dream come true
We fulfil our customers' dreams of a modern and classic form, but also a striking solution that attracts attention. TERRANO roof and facade panel means innovative technology and aesthetic panel construction in an elegant design that fits well in both classic and modern architecture. The potential of roof and facade panels has been rediscovered. TERRANO fits perfectly with KROP gutter systems, characterised by reliability and excellent functionality.
Video

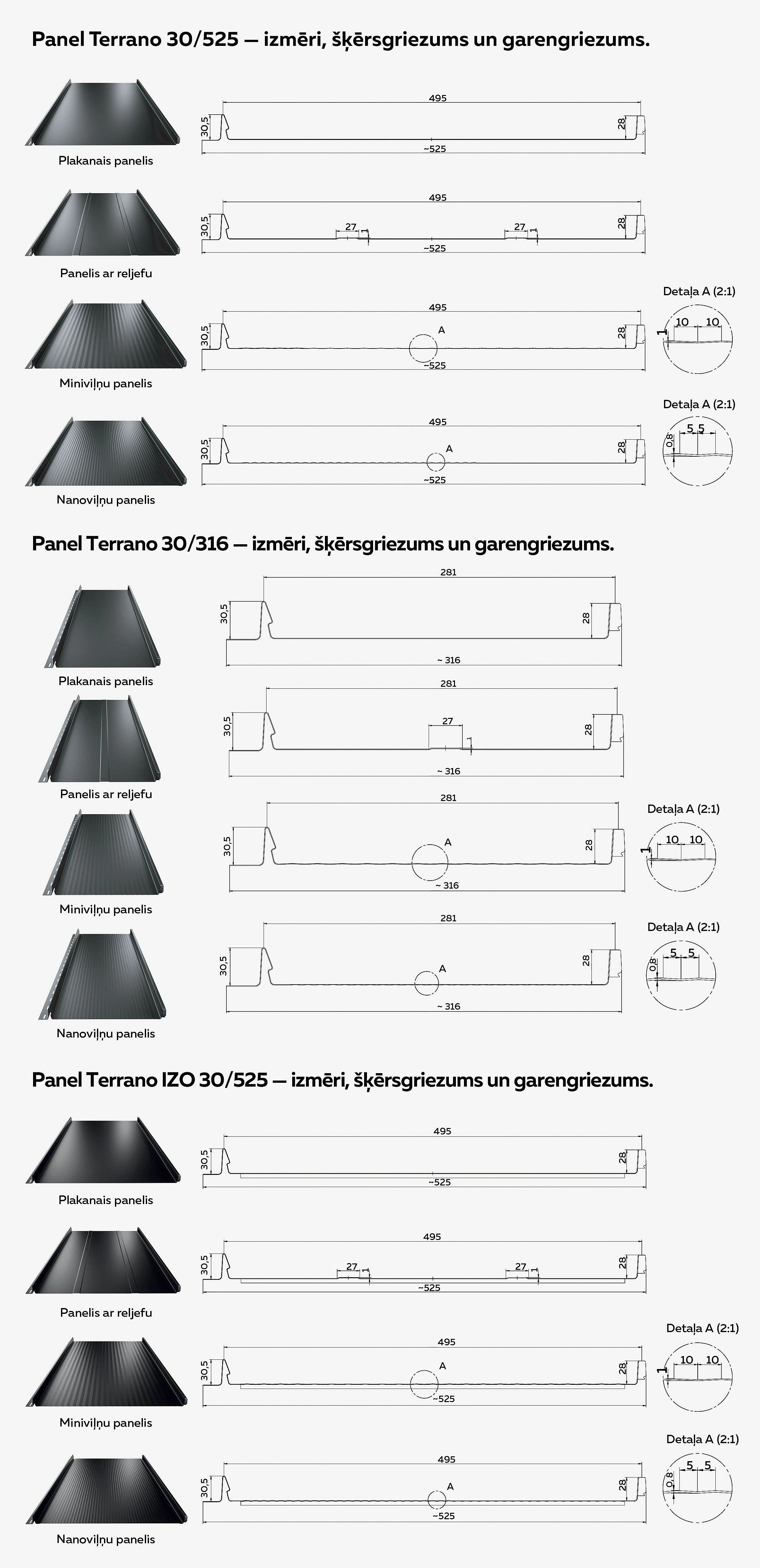

Technical details
Overall width
~316 mm / ~525 mm
Effective coverage width
281 mm / 495 mm
Finished product thickness (steel)
0.5 mm
Finished product thickness (aluminium)
0.6 mm
Curb height
28 mm
Click height
30.5 mm
Minimum sheet length
1400 mm
Recommended length
up to 8 t.m.
Detail excellence on your roof
We took care of what is not obvious at first glance, but which delights with excellence.
The aesthetics of the roof are preserved thanks to the folded end cap available in the offer, which hides the joints between the two panels. The optimised height of the flange and its rectangular shape also ensure a sophisticated harmony between an elegant and modern look.
Miniwave and nanowave technology
The Terrano panel is the result of a combination of a roofer's craftsmanship and future technology.
Thanks to mini-wave and nano-wave technology, Terrano reflects light rays, making the "ripple" effect caused by tension and small irregularities in the substrate less noticeable. In addition, it strengthens the panel.
Eye-pleasing visual effect
The Terrano dashboard's attractive visual effect is achieved by a "click" latch.
It creates an aesthetic connection between the two panels. The perfect product in every detail is the tapis thanks to the optimised height of the rectangular pleat, which gives the roofing a sleek and modern look.
Easy installation
The Terrano roof panel is a click-lock panel, or a simplified version of a roll-over roof.
A correctly installed screw ensures "longitudinal work". In addition, the mounting part of the panel makes the panel more rigid and has optimal mounting holes. Easy installation and comfortable working on the roof.
Innovative packaging and transport system
By targeting innovation at every stage of the customer service chain, we rely on an innovative packaging and delivery system.
The automated process guarantees adequate protection of goods against damage during transport and storage. Customers can be sure that their product will remain intact from the moment it is taken off the production line until it is unloaded at the construction site. Packing the panels vertically on special wooden stands makes the roofer's job easier.
Roof tile profile
Paints and raw material
STEEL SERVICE CENTRE (SSC)
HYDROCONTROL
SPS
Available colors
Poliester Standard (RAL)
- RAL 3005
- RAL 3009
- RAL 3011
- RAL 8004
- RAL 5010
- RAL 6020
- RAL 6029
- RAL 7016
- RAL 7024
- RAL 8017
- RAL 8019
- RAL 9005
- RAL 9006
- RAL 9007
- RAL 9010
Poliester Standard (MAT)
- RAL 3005
- RAL 3009
- RAL 3011
- RAL 5010
- RAL 6020
- RAL 6029
- RAL 7016
- RAL 7024
- RAL 8004
- RAL 8017
- RAL 8019
- RAL 9005
- RAL 9006
- RAL 9007
- RAL 9010
Super Poliester Standard R-MAT
- RAL 9007
- RAL 7016
- RAL 9005
Pladur® Wrinkle mat
- Pladur® Wrinkle MAT TK 6020
- Pladur® Wrinkle MAT TK 8004
- Pladur® Wrinkle MAT TK 3009
- Pladur® Wrinkle MAT TK 8019
- Pladur® Wrinkle MAT TK 7016
- Pladur® Wrinkle MAT TK 7024
- Pladur® Wrinkle MAT TK 9005
- Pladur® Wrinkle MAT TK 8017
Pladur® Relief IceCrystal
- Pladur® Relief iceCrystal TK 6020
- Pladur® Relief iceCrystal TK 8004
- Pladur® Relief iceCrystal TK 3009
- Pladur® Relief iceCrystal TK 8019
- Pladur® Relief iceCrystal TK 7016
- Pladur® Relief iceCrystal TK 7024
- Pladur® Relief iceCrystal TK 9005
SUPERIOR HB
- SUPERIOR HB RAL 8004 HB
- SUPERIOR HB RAL 3009 HB
- SUPERIOR HB RAL 8019 HB
- SUPERIOR HB RAL 7016 HB
- SUPERIOR HB RAL 7024 HB
- SUPERIOR HB RAL 9005 HB
Pladur® Relief Wood
- RAL 9005
Pladur® Wrinkle Mat Plus
- Pladur® Wrinkle Mat Plus 9005
- Pladur® Wrinkle Mat Plus 7016
- Pladur® Wrinkle Mat Plus 8019
Aluminium STUCCO
- RAL 9005
- RAL 7016
- RAL 9019
- RAL 8017
Coating
| Protective Cover | Coating Thickness Side A | Environmental Classification | Perforation Warranty | Warranty for paint delamination |
|---|---|---|---|---|
| Pladur® Wrinkle Mat Plus | 50 µm | C4 | 60 years | 30 years |
| Pladur® Relief IceCrystal | at least 36 μm | C4 | 55 years - Guarantee against perforation for environmental classification C1-C3 35 years - Guarantee against perforation for environmental classification C4 | 20 years |
| Pladur® Relief Textured Wood | Min 36 µm | C4 | 55 years - Guarantee against perforation for environmental classification C1-C3 35 years - Guarantee against perforation for environmental classification C4 | 20 years |
| Poliester standard mat | 35 µm | C3 | 45 years | 15 years |
| Superior HB | 50 µm | C4 | 55 years | 45 years |
